Electric Lighting Construction Sets - Outdoor Miniature Post-top Lighting-Units/Luminaires

 Outdoor Miniature Post-top Lighting-units/Fixtures -

Assembly Sectional View



Range of sizes:


     >  195/192 mm

                                   7" - 184/180/178

     >  174/168 mm

                                      6" - 155/152/150

      >  136.1 mm

                                      5" - 130/127/125

      >  4.83 in - 125/122/120

                                       4" - 105/102/100

       >  3.4/3.5 in -  90/87/85



- Voltage: 12V; 24V DC (ripple-free).
- Only insulated lampholders required.

---

---

Outdoor Miniature Post-top Luminaire - 168/174mm

Assembly Side View

---

Miniature Post-top Outdoor Lighting Fixtures - 136.1mm (136/141)

Assembly Side View

---

---

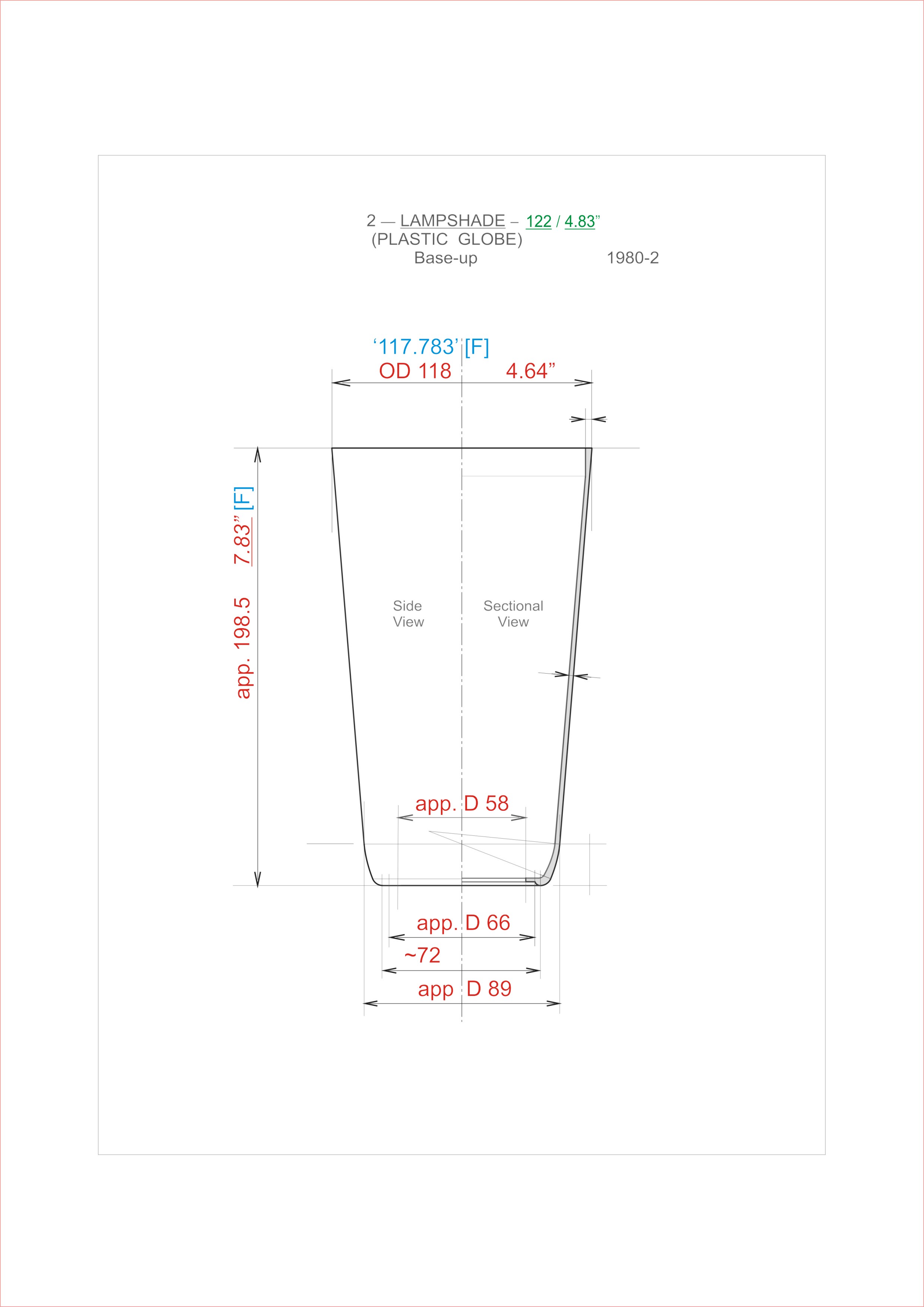

Outdoor Miniature Post-top Luminaire - 118/122mm

---

Outdoor Miniature Post-top Luminaire - 100mm

---

Outdoor Miniature Post-top Lighting Fixtures - 3.4/3.5in

---
